v0.15.0 - 2026-03-31

High Level

This release pushes Copper from "deterministic robot runtime" toward "deterministic distributed runtime". The big theme is distributed Copper: not only as a multi-subsystem configuration (sub components of one robot) but also we can now describe a whole swarm-style deployment by stamping out many robot instances with per-instance overrides, and replay the resulting distributed logs deterministically.

On the runtime side, CopperList I/O can now move off the main loop, an optional parallel execution path keeps multiple CopperLists in flight boosting the general throughput while preserving ordered commit/logging, and host-side cadence control got a tighter high-precision limiter if you need to controlled minimum tick generation.

Breaking API Changes

  • cu29-helpers is retired; generated app builders are now the migration path
    cu29-helpers now exists only as a compatibility stub that points downstream users to the generated builder API. If you previously relied on helper-based setup, migrate to the generated app builder and configure log path, clock, logger, config override, resources, and instance_id there. (#975)
    New style: rust let mut app = MyApp::builder() .with_log_path(log_path, slab_size)? .build()?;

New Features

  • Distributed Copper for multi-robot and swarm-style deployments
    Copper now understands an explicit multi-Copper umbrella config with subsystems, interconnects, and optional per-instance overrides. Generated apps can target one subsystem with #[copper_runtime(config = "multi_copper.ron", subsystem = "...")], and the builder can inject an instance_id so the same static subsystem graph can be reused across many robots. This is the main building block for fleet deployments where every robot keeps the same type-safe topology but carries its own calibration, identity, or mission parameters. (#958, #976)

  • Deterministic distributed replay
    Replay is no longer only a single-process story. Copper can now discover distributed logs, validate them against a strict multi-Copper topology, reconstruct one replayable app per (instance_id, subsystem_id), and replay the whole fleet in a stable causal order. This is the strongest new debugging capability in v0.15: if a multi-robot run failed in the field, Copper can now replay the interaction between all recorded subsystems instead of forcing you to debug them one at a time. (#964)

  • Async CopperList logging and optional parallel runtime execution
    async-cl-io offloads CopperList serialization/logging to a dedicated std thread, and parallel-rt adds an ordered stage pipeline that can keep multiple CopperLists in flight at once without giving up deterministic ordered commit/logging. The new cu_async_cl_io_bench, cu_runtime_matrix, and cu_parallel_mandelbrot examples exist specifically to make those runtime tradeoffs visible and testable. (#940, #942, #945)

  • High-precision runtime rate limiter
    runtime.rate_target_hz now has an optional high-precision-limiter mode that uses a hybrid sleep/spin loop for tighter host-side cadence. This is aimed at applications that want a bounded execution rate without the looser timing of a pure sleep-based limiter. (#988)

Config/API Updates

  • Per-instance config overlays make fleets practical to manage
    A multi-Copper config can now declare an instance_overrides_root, letting each robot instance keep a small overlay file instead of copying and forking an entire subsystem graph. Example: ron ( subsystems: [ ( id: "robot", config: "robot_base.ron", ), ], interconnects: [], instance_overrides_root: "instances", ) Then instances/17/robot.ron can override only the fields that differ: ron ( set: [ ( path: "tasks/reporter/config", value: { "label": "robot-17", "gyro_bias": [0.012, -0.004, 0.008], }, ), ], ) In practice, that means one static robot graph can be deployed as robot 17, 42, or 500 with different calibration or identity, while the generated code and topology stay identical. (#976)

  • Subsystem-aware generated apps and builders
    #[copper_runtime(...)] now accepts subsystem = "..." for multi-Copper configs, builders carry instance_id, and the generated runtime preserves subsystem identity in lifecycle/debug/replay metadata. That makes subsystem-specific logs, replay registration, and per-instance app construction type-safe instead of stringly runtime glue. (#958, #964, #974)

  • resources! now supports explicit owned vs borrowed resource bindings
    Resource wiring got clearer: the resources! macro can now express whether a task/bridge takes ownership of a resource or borrows it from the ResourceManager. This matters because multi-instance deployments and richer runtime generation make resource lifetime mistakes easier to make if ownership stays implicit. (#963)

  • Builder-centric runtime construction is now the standard path
    The runtime construction refactor consolidates generated application setup around the builder API, and the old direct CuRuntime::new(...) family is now clearly secondary/deprecated. This is the same migration path used to replace cu29-helpers. (#974, #975)

Enhancements

  • Distributed graph tooling and examples got much stronger
    rendercfg now understands subsystem rendering, cu_zenoh_bridge_demo gained multi-Copper validation/provenance helpers, and cu_distributed_resim_demo gives a concrete three-subsystem/two-instance replay example. Together these make the distributed story much easier to learn and validate locally. (#958, #964, #972)

  • Unified log and runtime plumbing are more robust under load
    Added an opt-in mmap fsync mode for unified logs, fixed flushing of closed sections behind an open prefix, and added better runtime stress coverage around async I/O, parallel CopperLists, and background work. This is mostly infrastructure, but it directly supports the new concurrency/distributed features above. (#943, #944, #945)

  • Python task prototyping handles shared-memory payloads better
    Python integration now has shared-memory-backed CuHandle support and Python-side bindings/bootstrap support for those buffers, which reduces extra copies for the subset of payloads already represented as shared-memory handles. That keeps the "prototype in Python, move to Rust later" workflow more practical for image-like payloads. (#954)

Bug Fixes

  • Config resolution and runtime statistics correctness
    Fixed include-path resolution when configs include children via parent paths, corrected monitor bandwidth reporting, and fixed live-statistics overflow in the runtime. These are the kinds of bugs that become much more visible once you start wiring together larger distributed graphs. (#946, #953, #968)

  • Determinism/stress test correctness
    Fixed the deterministic stress test so it checks the right contract, which matters because v0.15 leans much harder on concurrency and replay claims than earlier releases. (#951)

  • Host/TUI build stability fixes
    Fixed TUI feature breakage and removed a vestigial ALSA dependency from the Bevy/TUI path. (#981, #982)

Dependency Updates

  • avian3d 0.5.0 -> 0.6.1 (#949)
  • soft-ratatui 0.2 updates/backports (#984)
  • embedded-io bump and small embedded dependency cleanup (#985, #986)

v0.14.0 - 2026-03-19

High Level

This release makes Copper much easier to explore and debug without relaxing its realtime design center. The headline feature is Python: Copper now has a Python task bridge for rapidly prototyping one task (and a smooth path towards a Rust migration). Monitoring also gets a v1 redesign with multi-monitor composition and a dedicated safety monitor, while the web assembly (runtime in browser) demo path, ROS2 bridge support, and reference components all moved forward.

Breaking API Changes

  • Task and bridge lifecycle callbacks now receive &CuContext instead of &RobotClock
    Why: callbacks now get the runtime clock and execution metadata such as the current CopperList id and task identity. That context is also the common shape used by simulation, monitoring, and Python integration. Update lifecycle methods on CuSrcTask, CuTask, CuSinkTask, and CuBridge. (#857)
    Before: rust fn process(&mut self, clock: &RobotClock, input: &Self::Input<'_>, output: &mut Self::Output<'_>) -> CuResult<()> After: rust fn process(&mut self, ctx: &CuContext, input: &Self::Input<'_>, output: &mut Self::Output<'_>) -> CuResult<()>

  • Custom monitor implementations must port to Monitoring v1
    Why: the monitor API is now explicit and typed instead of being assembled through late setters. CuMonitor::new now receives CuMonitoringMetadata and CuMonitoringRuntime, process_copperlist receives a CopperListView, and process_error now uses ComponentId plus CuComponentState. Old set_topology(...) and set_copperlist_info(...) hooks are gone because that data is part of the construction metadata. This is what enables multi-monitor composition and the dedicated safety-monitor path. (#860, #868, #877)
    Old signatures: rust fn new(config: &CuConfig, taskids: &'static [&'static str]) -> CuResult<Self>; fn process_copperlist(&self, msgs: &[&CuMsgMetadata]) -> CuResult<()>; fn process_error(&self, taskid: usize, step: CuTaskState, error: &CuError) -> Decision; New signatures: rust fn new(metadata: CuMonitoringMetadata, runtime: CuMonitoringRuntime) -> CuResult<Self>; fn process_copperlist(&self, ctx: &CuContext, view: CopperListView<'_>) -> CuResult<()>; fn process_error(&self, component_id: ComponentId, step: CuComponentState, error: &CuError) -> Decision;

  • If you build with reflect, payload types now need proper reflection metadata
    Why: schema/debug/export/Python flows rely more directly on reflected payloads. Under the reflect feature, CuMsgPayload now requires Reflect and TypePath. In practice that usually means deriving Reflect on your message payloads and checking any wrappers/generic payload types still satisfy the bound. (#893, #894)

New Features

  • Python support for tasks
    Copper now ships cu-python-task, which lets one CuTask run in Python in either process or embedded mode. That path is explicitly for experimentation only: it is a good way to validate an algorithm quickly, but it is a bad fit for production because every call crosses the Rust/Python boundary, allocates, and copies data. The intended workflow is still: prototype one task in Python, then rewrite it in Rust. (#895, #896, #931, #935)

  • Monitoring v1: composable monitors plus a dedicated safety monitor
    Copper's monitoring API is now strong enough to separate concerns cleanly. You can keep a focused safety policy, a UI monitor, and a lighter logging/debug monitor instead of merging all of that into one monitor implementation. A new cu_safetymon adds configurable decisions for lock failures, panics, and shutdown conditions. (#860, #868, #877)

  • Webassembly as a new target! After CPUs, MCUS, now Copper can run directly in browsers! (mainly for live demos at the moment)
    The shared cu_tuimon model and new cu_bevymon backend let Copper's live monitor run inside Bevy, and selected demos now run in the browser through wasm/Trunk. This matters because users can try a real Copper app, inspect the live monitor, and understand the task graph without needing hardware first. The BalanceBot and flight-controller demos are now much stronger showcase/reference apps for that flow. (#901, #902, #905, #906, #919, #920)

  • ROS2 bridge and integration surface expansion
    cu_ros2_bridge is now bidirectional, adds liveliness tokens, and supports a ring queue mode for ROS2 payload paths. This makes it much easier to slot Copper into an existing ROS2 environment while keeping the bridge idiomatic on the Copper side. (#834, #899, #914)

  • New components and reference integrations
    Added cu_dps310 (barometer/thermometer), cu_ist8310 (magnetometer), and cu_feetech (Feetech servo bus for STS3215/SO101). GNSS is now wired through the flight-controller reference path as well, which makes the main example stack more representative of a real robot application. (#844, #845, #846, #882)

Config/API Updates

  • Single-monitor configs use monitor, multi-monitor fan-out uses monitors
    For one monitor, prefer: ron monitor: (type: "your_monitor::Type") For fan-out, use: ron monitors: [ (type: "monitor_a::Type"), (type: "monitor_b::Type"), ] Config deserialization accepts both forms, so existing configurations continue to load. (#868, #877)

  • Bridges now support run_in_sim
    Bridges can now opt in or out of running their real implementation in simulation mode, just like sources and sinks already could. The bridge default is true to preserve historical behavior. This is useful for middleware-style bridges that should stay live during simulation. (#862)

  • Multi-output graphs can mark an output as intentionally not connected
    Use dst: "__nc__" when a task or source exposes more outputs than a given mission wants to consume. That keeps the graph wiring explicit instead of forcing fake sinks or ad hoc workarounds, and Copper now supports partial wiring of multi-output sources directly. (#883)

  • Tasks can now accept up to 12 inputs
    The generic tuple support for task inputs was extended from 5 to 12, which removes a lot of unnecessary merger tasks in larger graphs. (#880)

Enhancements

  • Runtime/debug/export plumbing got deeper
    Runtime lifecycle records are now a first-class log section and remote debug gained snapshot caching. Together with the new Python iterators, recorded runs are much more useful for debugging and offline inspection. (#842, #850, #896)

  • cu29-value got broader data coverage
    cu29-value now supports Python conversions and 128-bit integers, which matters for reflection, config-like value transport, and cross-language tooling. (#929, #935)

  • Reference demos are more coherent
    The flight controller and BalanceBot examples now share the same optional Bevy monitor pattern, browser demo path, and much better overlays/UI. That makes them stronger examples for new users evaluating Copper. (#863, #865, #871, #919, #920)

Bug Fixes

  • Background task logging correctness
    Fixed stale CopperList values leaking from previous iterations on background tasks. (#934)

  • Simulation and timing stability
    Fixed unstable sim timings and corrected downstream timing propagation on bridges. (#847, #926)

  • Mission/logreader correctness
    Multi-mission gen_cumsgs! generation now includes all CopperList message types. (#849)

  • ROS2 compatibility fixes
    Fixed ROS2 Humble type-hash handling and Zenoh attachment formatting issues. (#838, #839)

Dependency Updates

v0.13.0 - 2026-02-13

High Level

This release focuses on developer experience and runtime observability: Reflection/Schema support, remote and time-travel debugging APIs, richer MCAP exports, and a new Rerun-based visualization path. On the runtime side, Linux/std resource wiring is now centralized, the units stack is standardized through cu29-units, and simulation/determinism tooling has been strengthened.

Breaking API Changes

  • Config getters now propagate conversion errors
    ComponentConfig::get<T>() and Node::get_param<T>() now return Result<Option<T>, ConfigError> (instead of Option<T>), and CuConfig::serialize_ron() / deserialize_ron() now return CuResult instead of panicking. (#682)
  • Reflection is now an explicit feature flag
    If you relied on reflection being implicitly enabled, add the explicit feature in your crate configuration. (#796)
  • Units migrated to cu29-units
    Repository-wide refactor removes direct uom usage in favor of cu29::units; update imports and type paths accordingly. (#815, #824, #827)

New Features

  • Reflection/Schema + debugger APIs
    Added Reflection & Schema support with debug-session integration, plus remote debug and time-travel debugger APIs. (#793, #798, #744, #792)
  • Richer log tooling and visualization
    New cu29-logviz (Rerun-based visualization), logreader added to workspace templates, and MCAP export precision/progress improvements using exact reflected schemas. (#768, #771, #661, #688, #797)
  • Centralized Linux/std resources
    cu-linux-resources introduces centralized serial/I2C/GPIO resource management and migrates Linux/std components to consume shared resource bindings. (#790)
  • GNSS payloads + u-blox reference implementation
    Standardized GNSS payloads landed with a concrete u-blox reference path. (#803)
  • Bridge and simulation capabilities
    Added simulation callbacks for bridges, sim-mode bridge getters, and cu_iceoryx2_bridge to replace separate source/sink split in that stack. (#722, #788, #709)
  • Config/runtime ergonomics
    Structured ComponentConfig deserialization via cu29-value for safer typed config handling. (#762)
  • Console monitoring upgrades
    Added DAG log stats, DAG layout caching, bandwidth/disk stats, mouse + clipboard support, and headless-mode fallback logging. (#691, #699, #667, #672, #723, #741)

Enhancements

  • Determinism and CI confidence
    Added determinism record/resim CI coverage in cu-caterpillar, plus faster/cleaner embedded CI with cache improvements and expanded CodeQL coverage. (#774, #761, #754, #757)
  • Developer workflow
    Switched from pre-commit to prek and improved project-level lint/check automation. (#783, #787, #718)

Bug Fixes

  • Determinism/runtime correctness
    Fixed multiple determinism issues and a runtime iteration early-return bug. (#727, #789)
  • Resource and simulation fixes
    Fixed shared-resource test bindings, Linux resource defaults, and follow-up breakages from the Linux resource migration. (#752, #809, #801, #802)
  • Monitoring and logging stability
    Fixed monitoring indirection issues and made stderr capture failures non-fatal in console monitoring flows. (#735, #734, #724)

Dependency Updates

  • bevy 0.18 (#664)
  • rerun 0.29 (#770)
  • rp235x 0.4 and pio 0.3 (#782)
  • rand 0.10 (#794)
  • pyo3 0.28 (#777)
  • nix 0.31 (#714)
  • glam 0.31 -> 0.32 updates across crates (#713, #813)
  • jsonschema 0.41 (#814)

v0.12.0 - 2026-01-15

High Level

Resources are now first-class in Copper: you can describe hardware endpoints and shared system services in config, then bind them to tasks/bridges without rewriting code. Multi-output tasks land, mission/DAG rendering is clearer, and the flight controller stack is now a solid base for autonomous flying machines on off-the-shelf hardware.

Breaking API Changes

  • Resources are now explicit in task/bridge constructors
    Why: resources are now configured in copperconfig.ron just like config, so ownership/sharing and board wiring live in the mission config instead of task code. This keeps tasks portable across missions/boards and makes resource lifetimes consistent.
    Before (v0.11: no resources parameter): rust impl CuTask for TelemetryTask { fn new(cfg: Option<&ComponentConfig>) -> CuResult<Self> { let port: String = cfg.and_then(|c| c.get("serial_port")).unwrap(); let serial = SerialPort::open(port)?; Ok(Self { serial }) } } After (v0.12: no resources needed, use () and ignore _res): ```rust impl CuTask for TelemetryTask { type Resources<'r> = ();

    fn new(cfg: Option<&ComponentConfig>, _res: ()) -> CuResult { let port: String = cfg.and_then(|c| c.get("serial_port")).unwrap(); let serial = SerialPort::open(port)?; Ok(Self { serial }) } } After (v0.12: with resources):rust pub struct TelemetryResources<'r> { pub serial: Owned, }

impl<'r> ResourceBindings<'r> for TelemetryResources<'r> { type Binding = TelemetryBinding;

  fn from_bindings(
      mgr: &'r mut ResourceManager,
      map: Option<&ResourceBindingMap<Self::Binding>>,
  ) -> CuResult<Self> {
      let map = map.expect("serial binding");
      let serial = mgr.take(map.get(TelemetryBinding::Serial).unwrap().typed())?;
      Ok(Self { serial })
  }

}

impl CuTask for TelemetryTask { type Resources<'r> = TelemetryResources<'r>;

  fn new(_cfg: Option<&ComponentConfig>, res: Self::Resources<'_>) -> CuResult<Self> {
      Ok(Self { serial: res.serial.0 })
  }

} ```

  • Messages must implement Deserialize
    Why: every Copper message now round-trips through serde so comm systems (Zenoh bridges, Copper-to-Copper, Copper-to-foreign) stay compatible across transports with the flexibility of serde. CuMsgPayload now requires DeserializeOwned. (#648)

New Features

  • Resources system (bundles + two-phase init + exports)
    Define hardware endpoints and shared system services (serial ports, buses, thread pools, memory arenas, etc.) in copperconfig.ron and bind them by name to tasks/bridges. Think of it as a hardware abstraction/wiring layer: tasks ask for named resources and the config decides which board resource they get. Resource tables are now rendered in DAGs. (#557, #580, #581, #579, #562, #619, #631)

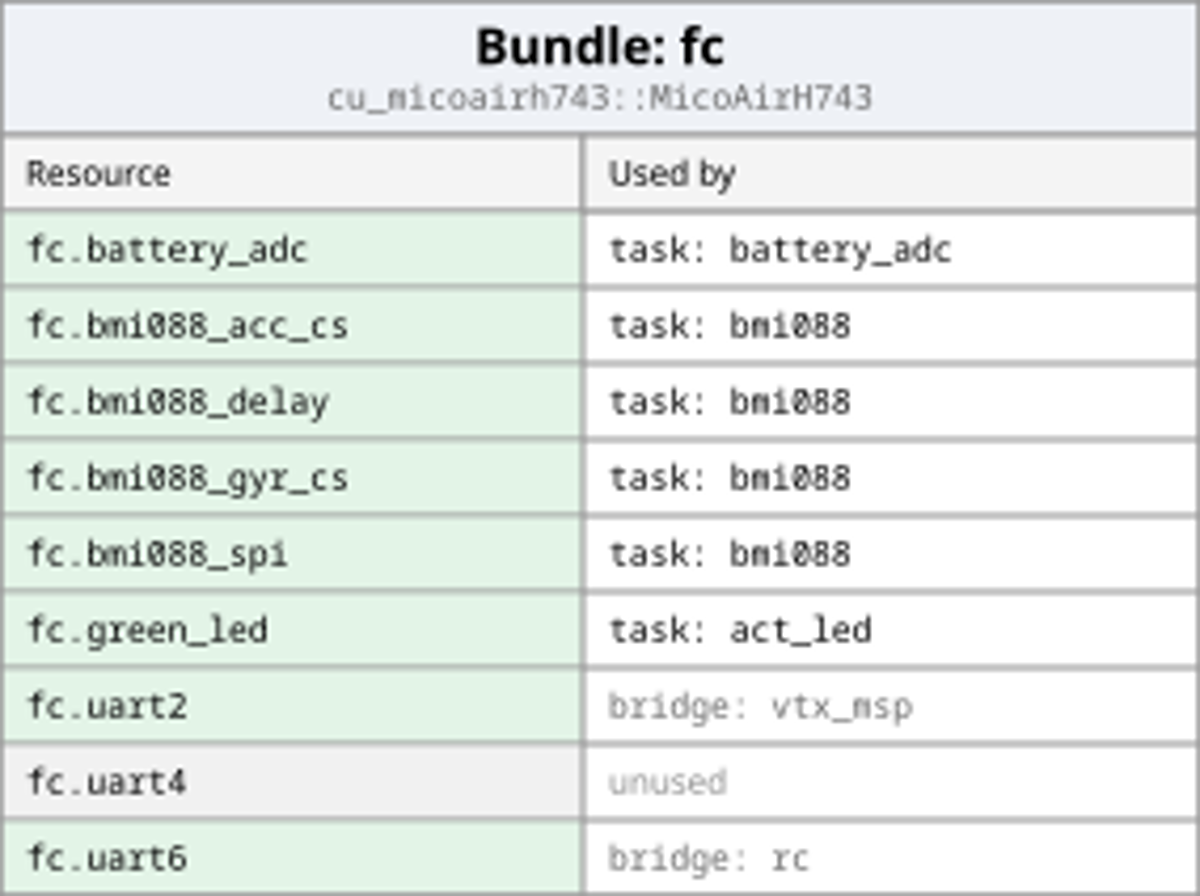

    Resource tables in DAGs

  • Multi-output tasks
    Tasks can emit multiple outputs natively, unlocking richer graph topologies. (#635)

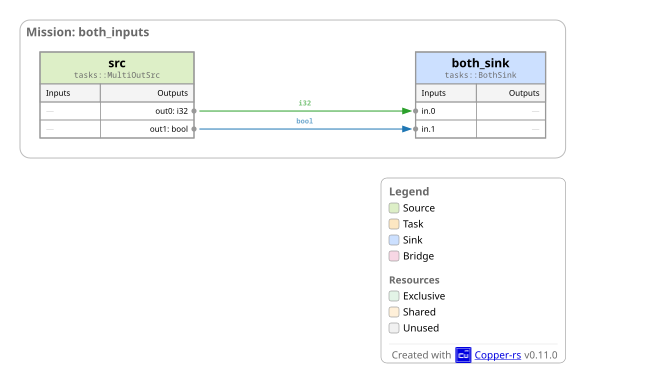

    Multi-output DAG

  • Mission/DAG rendering upgrades
    Custom SVG renderer, clearer layout, legend/credit, and CuGraph helpers for repeated patterns. (#588, #642, #589, #611, #556)
    Generate your own with: cargo run -p cu29-runtime --bin cu29-rendercfg -- examples/<app>/copperconfig.ron --mission <id> (writes output.svg, add --open to preview)

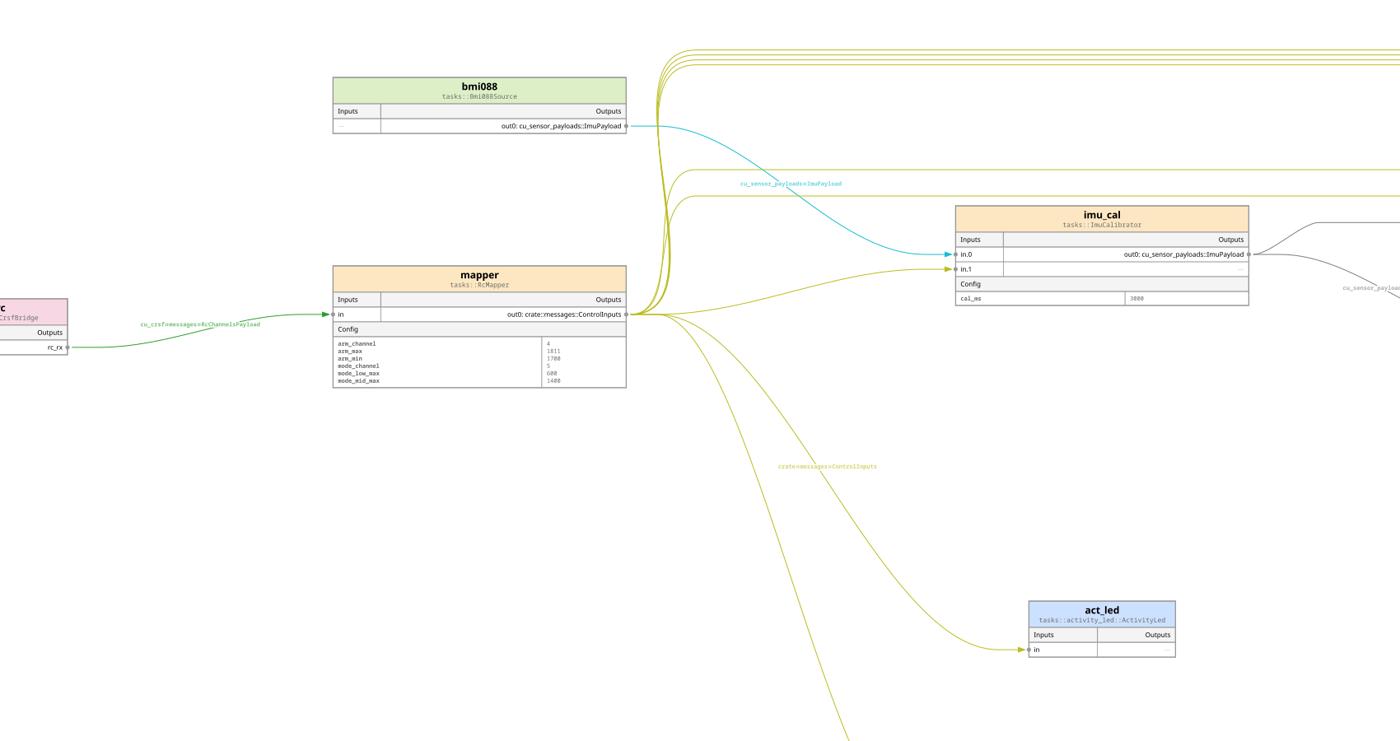

    DAG rendering

  • Logging additions
    New textlogs support, a temporary EOF marker to recover logs cleanly after abrupt power loss (think yanking a drone battery), and FC log extraction helpers. (#623, #535, #593)

Flight Controller SDK (MVP+)

This is now a strong base for autonomous flying machines on off-the-shelf hardware, with Copper handling the control, logging, and radio/ESC plumbing.

  • STM32 baseline + DSHOT
    STM32 reference stack with ELRS + storage, plus STM32 DSHOT support. (#546, #575, #577)

  • Video + OSD + tuning
    Video transmission support, battery voltage on OSD, and tuning/airmode improvements. (#602, #621, #622, #624, #598)

  • Sensors and AHRS
    BMI088 driver + logging, updated MPU9250 registry driver, generic IMU payload, and base AHRS task. MSP sensor decoding into the FC pipeline. (#592, #552, [#536], [#540], #630)

  • Optical flow mission
    The flow mission is the base FC graph plus the optical flow sensor and its logging, so you can toggle it without rewriting the baseline mission. (#647)

Enhancements

  • CuError cause chaining for clearer error context. (#608)
  • Default double-buffering for Copperlists. (#578)
  • Cu-bincode fork to stabilize embedded serialization. (#576)
  • Worktree and justfile polish for dev workflows. (#597, #605, #606, #607)

Bug Fixes

  • Multi-input routing bug fixed. (#604)
  • Background task determinism restored. (#533)
  • Consolemon exit crash fixed. (#555)
  • no_std logmon compile fix. (#550)
  • Compile test now emits distinct errors per channel. (#570)

Dependency Updates

  • defmt 1.0 (#634)
  • buddy_system_allocator 0.12 (#636)
  • embedded-alloc 0.7 (#599)
  • linux-embedded-hal 0.4 (#539)
  • bevy 0.17 (#590)
  • iceoryx2 0.8 (#587)
  • rerun 0.28 (#574)
  • cached-path 0.10 (#573)
  • svg 0.18 (#601)
  • tui-widgets 0.7 (#600)

Special thanks

  • Yang Zhou for release engineering work (CI refactors, parallelism, and caching) that kept the pace of this release.

v0.11.0 - 2025-11-26

High Level

In this release we are introducing a new type of tasks: Bridges to help users implement multi-channel transports (serial, CAN, ELRS radios, ESC buses…). Technically they are like a set of our existing sources and sinks bundled into one logical component, it makes it easier to manage state from external systems and Copper.

This release also delivers the minimum viable set of crates to build a Copper-native flight controller!

MSP messaging, PID control, ELRS/CRSF radio links, and bidirectional DSHOT ESCs all run in no_std.

Flight controllers are only the first vertical we are bootstrapping but we will rotate through specialties (driving, etc...) to continue to give some basic components to get you started quickly with Copper.

New Features

  • CuBridge Runtime + docs
    Bridge landed end-to-end: config parsing (#490), runtime scheduling (#495), and graph APIs (#491, #500) now understand multi-channel transports with typed payloads and shared resources. The new CuBridge Concept page explains how to declare Tx/Rx channel sets, map them in missions, and extend bridge lifecycles. A cu_bridge_test example (#509) pairs with the monitoring tooling so you can dry-run bridges locally before flashing firmware.

  • Bridge-aware monitoring & graphing
    cu_consolemon renders bridges directly in the TUI DAG (#510, #511) and the live graph now matches the DOT export down to the shared transport connectors (#512, #513).

CuBridge monitoring

Live graph parity

Flight Controller SDK (MVP / Prototype)

We are waiting for a couple of rp2350-based FC boards to test it in flight but if you are interested to start developing your own, it works very well on our devkit with the SDcard logging support etc.

fc on devkit

  • MSP everywhere (no_std + bridge)
    The MSP library/bridge combo is now fully no_std and built on top of the new cu_embedded_registry, so you can share UART handles between copper crates on MCUs (bda362600, #516). MSP (MultiWii Serial Protocol) remains the lingua franca for controllers such as INAV, Cleanflight, and Betaflight; the bridge exposes batch Tx/Rx channels so Copper tasks can stream RC data, sensor packets, or tuning commands without rewriting MSP plumbing.
  • PID controller in firmware
    cu_pid drops its std dependency and uses only alloc, letting you tune and run PID loops directly on bare-metal targets (#514). Tasks that already use the PID helper on Linux now compile unchanged for firmware.
  • ELRS/CRSF bridge (std + no_std)
    The radio link supports both environments, shares serial ports via the embedded registry, and routes telemetry back into Copper so you can log link quality or failsafe events alongside flight data (#498, bda362600).
  • Bidirectional DSHOT (RP2350 only for now)
    DSHOT is the digital ESC bus flight controllers use to send throttle commands and receive telemetry on the same wire; the RP2350 bridge drives ESCs with DSHOT800 timings, decodes the one-wire telemetry bursts, and exposes four static channels into the task graph ([#497]). MSP + PID + CRSF + DSHOT are the core building blocks for a Copper flight controller today, and extending the stack is just writing more Rust tasks/bridges.

Remote Ops & Telemetry

  • ELRS/CRSF remote operation stack
    cu_crsf gained the same std/no_std duality as the rest of the bridge family, so the exact radio link you use to operate a Copper robot over ExpressLRS works both on host testbeds and MCUs (#498, bda362600). The bridge speaks CRSF for RC commands and streams link quality, battery, and failsafe telemetry down the same radio pipe, and the new cu_elrs_bdshot_demo shows it driving ESCs from a handheld radio out of the box.

ELRS receiver

  • Bidirectional DSHOT flight stack demo
    cu_bdshot encapsulates the RP2350 PIO/DMA programming needed to control four bidirectional DSHOT ESCs and collect their telemetry ([#497]). Combined with the ELRS bridge you can run a remote pilot loop—commands in, ESC telemetry out—entirely in Copper.

ELRS + DSHOT demo

Bug Fixes

  • The simulation generation was not able to generate a Sink proxy (replacing your actual task and callbacking the sim) if you were listening to 2 other tasks as input. This is fixed with (#512). Thank @matthewashton-k for your patience on this one.

Enhancements

  • We made some monitoring TUI visual improvements (more compact, nicer icons and merging connectors) TUI visual improvements

  • CuBridge UX polish: optional routes on bridge channels (#499) and assorted QoL cleanups (#500) make mission authoring less verbose.

  • Vendored TUI nodes: we now ship a patched tui-nodes copy tailored for bridge rendering inside cu_consolemon.
  • Weekly CI: embedded-crate detection got smarter so ARM-only components stay exercised automatically (#507).
  • Dependency refresh: ron 0.12 (#503), cudarc 0.18 (#504), and rerun 0.27 (#506) keep the desktop toolchain current.
  • no more rkv: After a discussion with Mozilla it was clear that they won't support the lmdb backend we used for storing our string indexes for our structured logging. We swapped the implementation to a very dumb lock + bincode dump. At some point we will improve that with a system similar to what defmt uses (that is scalable per compiled crate).
  • no more console corruption: there was ways the system could quit from cu-consolemon without restoring properly the console, we fixed them (#526).

Special thanks

  • Yang Zhou for making our Weekly CI keep up with this crazy pace of development!

v0.10.0 - 2025-10-19

High Level

Major milestone: baremetal support lands across the stack, SD/eMMC logging backends, CMSIS-DAP probe workflow. RP2350 is the reference platform; examples and scripts are included.

New Features

  • Baremetal (no_std) end-to-end
    Ported core crates and runtime to no_std and added embedded tests to CI (#444, #446, #447, #449, #450, #451, #452, #453, #454, #455, #456, #457, #458, #459, #460, #461, #466, #467, #468)

  • RP2350 Reference Example
    examples/cu_rp2350_skeleton a "blinky" example for Copper on its reference platform to get you started quickly. Pairs with docs and a formatting script for the Copper log partition on SDCards. (#467, #468)

  • RobotClock with Calibration (baremetal + host)
    New calibrated clock that accepts an external reference (RTC/GPS/etc.) on embedded and desktop; raw counter access standardized. (#478)

  • Logging straigth to a filesystem partition: SD / eMMC logging backends
    Embedded backends for unified logging (#473, #474)

  • CMSIS-DAP probe workflow + defmt bridge
    Probe defaults, cargo run deploy loop via probe; bridged the Copper logging to defmt for MCU-friendly debugging. (#470)

  • Host vs Firmware split
    Cleaner tree and CI: host utilities (incl. run-logreader) live outside firmware paths. (#476)

  • More tolerant log reader
    No longer panics on unclosed logs; returns an error instead. (#477)

Enhancements

  • Stabilized std/no_std/sim combos and removed legacy host feature in favor of explicit std flags where applicable. (#462)
  • Config & runtime refactors for embedded storage backends in CuApplication. (#472)

v0.9.1 - 2025-09-12

High Level

Point release improving simulation control, fixing task indexing bugs, and refreshing several dependencies for long-term maintenance.

New Features

  • run_in_sim for Sources & Sinks (#431)
    Override Copper’s default sim stubbing for hardware endpoints. Useful when your sim must keep talking to external middleware (ROS bridge, Zenoh, etc.).

ron ( tasks: [ ( id: "ros_bridge", type: "tasks::RosBridgeSink", run_in_sim: true, // real sink runs even in sim ), ] )

Bug Fixes

  • Task output index calculation fixed to select the correct output slot. (#426)
  • Index into output arrays now uses node_id rather than output_position. (#430)
  • Threadpool use-after-move resolved by cloning the pool correctly; improves stability for background tasks. (#416)
  • cu-monitor empty status crash removed legacy workaround that caused crashes. (#415)
  • Crates.io metadata corrected for publication. (#414)
  • CI: disabled Windows CUDA runner until upstream action is fixed. (#424)

Dependency Updates

  • ron → 0.11.0 (API changes adapted). (#427)
  • pyo3 → 0.26.0 (ported to new API). (#429)
  • cached-path → 0.9.0. (#428)
  • nalgebra → 0.34.0. (#420)
  • cudarc → 0.17.0. (#419)
  • GitHub Actions: Jimver/cuda-toolkit 0.2.26 → 0.2.27. (#425)
  • GitHub Actions: actions/checkout v5. (#423)

v0.9.0 - 2025-07-31

High Level

This release is primarily driven by user requests. It introduces a full transform library (à la tf2 for ROS), new keyframes in the logs, background tasks, a log checker, and a set of runtime and logging tuning parameters to better adapt to constrained environments.

API Change

The task API now uses finer-grained lifetimes for input and output types. This provides greater flexibility when testing tasks and was necessary to support the implementation of background tasks:

Old API:


impl<'cl> CuSrcTask<'cl> for FlippingSource {
    type Output = output_msg!('cl, RPGpioPayload);

    fn process(&mut self, clock: &RobotClock, output: Self::Output) -> CuResult<()> {
        self.state = !self.state;   // Flip our internal state and send the message in our output.
        output.set_payload(RPGpioPayload {
            on: self.state,
            creation: Some(clock.now()).into(),
            actuation: Some(clock.now()).into(),
        });
        Ok(())
    }
}

There are two changes required to port your tasks:

  1. The lifetime has moved from <'cl> on the task struct to <'m> on the Input and Output types.
  2. The process method now takes explicit references: & for input and &mut for output.

impl CuSrcTask for FlippingSource {
    type Output<'m> = output_msg!(RPGpioPayload);
    #          ^^^^

    fn process(&mut self, clock: &RobotClock, output: &mut Self::Output<'_>) -> CuResult<()> {
        #                                             ^^^^             ^^^^
        self.state = !self.state;   // Flip our internal state and send the message in our output.
        output.set_payload(RPGpioPayload {
            on: self.state,
            creation: Some(clock.now()).into(),
            actuation: Some(clock.now()).into(),
        });
        Ok(())
    }
}

New Component: cu_transform

The cu_transform crate provides real-time spatial and velocity transformations for Copper, with support for hierarchical frames, interpolation, and zero-allocation caching.

Huge thank you to @makeecat for this feature!

Features

  • Homogeneous matrix representation of 3D transforms
  • Time-stamped pose updates and interpolated lookups
  • Hierarchical transform tree with parent-child frames
  • Velocity computation via transform differentiation
  • Rigid-body velocity frame transformations
  • High-performance caching for repeated transform/velocity queries
  • Zero-allocation for real-time performance

Example: Pose Lookup

    use cu_transform::{StampedTransform, TransformTree, Transform3D};
    use cu29::clock::CuDuration;

    let mut tree = TransformTree::<f32>::new();
    tree.add_transform(StampedTransform {
        transform: Transform3D::default(),
        stamp: CuDuration(1000),
        parent_frame: "world".try_into()?,
        child_frame: "robot".try_into()?,
    })?;

    let pose = tree.lookup_transform("world", "robot", CuDuration(1000))?;

Example: Velocity Lookup

    use cu_transform::TransformTree;
    use cu29::clock::CuDuration;

    let velocity = tree.lookup_velocity("world", "robot", CuDuration(1500))?;
    let linear = velocity.linear_velocity();
    let angular = velocity.angular_velocity();

This component is ideal for real-time robotic applications needing fast, correct spatial and motion reasoning across dynamic coordinate frames.

New Features

  • background tasks: we now have a best effort asynchronous task type. Be careful to use memory handles if you feed them a large amount of data has the input and output need to be copied to allow the asynchronism to work. How to use it? just add background: true to any CuTask (not Src nor Sink).
(
    tasks: [
        (
            id: "task1",
            type: "tasks::ExampleTask",
            background: true,  // that's it
        ),
    ]

The result will be set in a random future CopperList so for the downstream tasks keep a close eye on the input.tov field to know from where this message is coming from.

Note: We have not implemented the deterministic replay yet for those, but it will come in an upcoming release.

  • logreader fsck: we now have a cool tool to not only check for the consistency of a Copper log and giving you some explanation of any corruption, it gives out some cool statistics about the logs:
pal ➜  cu_caterpillar (master) cargo run -r --bin cu-caterpillar-logreader logs/caterpillar.copper fsck

The log checked out OK.

          === Statistics ===
  Total time       -> 1.481 s
  Total used size  -> 14,120,984 bytes
  Logging rate     -> 9.09 MiB/s (effective)

  # of CL          -> 20,303
  CL rate          -> 13,708.96 Hz
  CL total size    -> 10,384,994 bytes

  # of Keyframes   -> 3
  KF rate          -> 2.03 Hz
  KF total size    -> 28 bytes

  # of SL entries  -> 162,433
  SL total size    -> 3,735,962 bytes
  • Added a runtime rate target configuration (#410): Copper can be too fast, especially with the introduction of background tasks. We added a way to rate limit the CopperList creation, exactly like a frame rate limiter would work in games because probably your robot doesn't need 500KHz refresh rates normal use cases.

For example limit at 100Hz:

(
    runtime: (
        rate_target_hz: 100,
    ),
    tasks: [
  • Adds a way to disable logging for some tasks. (#407)

With the determinism built in Copper, you might not want to log everything. We added a way to disable the logging of any task output. It will keep the metadata of the output though (Time of Validity, Status string ....)


    tasks: [
        (   // Normal
            id: "task0",
            type: "tasks::ExampleSrc",
        ),
        (
            id: "task1",
            type: "tasks::ExampleTask",
            logging: (
                enabled: false,  // HERE, no more logging for this one
            )

        ),
  • Keyframes (#369): Now Copper is able to record "keyframe" ie. the serialized state of all the tasks during runtime, sim or resim. This will allow nifty debugger features.
  • force Serialize implementation on CuMsg: This guarantees that the log reader can at least reexport the messages to all the SerDe backends.
  • cu-dorabench: a new benchmark more geared toward bandwith more than just latency.

Enhancements

  • CuStampData: a lot of robotics data needs to be timestamped and this is also true for the CuMsg between tasks. We have generalized this concept so you can use a contained with a time of validity and arbitrary metadata for your own internal use in your tasks and libraries.
// CuMsg is now defined as
type CuMsg<P> = CuStampData<P, CuMsgMetadata>;

// And now TOV (the time of validity for this temporal data) is directly accessible in the main object instead of the metadata
let mut m: CuMsg<u32> = CuMsg::new(12);
m.tov = CuDuration(1000).into();

// You can define temporal data types for yourself for example
type MyTemporalData = CuStampData<f64, ()>;

// And use them directly as a field in your tasks.
  • resim implemented for cu-caterpillar (#364): added that to our venerable example to test out various logger features easily.
  • cargo cubuild (#365): helps you debug when a change causes a code compilation error in the generated code. Just use that instead of build and it will insert the generated code at the macros spot and compile it.
  • CuCompactString: Better log and debug output showing the string nicely.

Bug fixes

  • Unified Logger Poisoned lock (#390): We had a cascading error when the main thread would panic and drop the logger.
  • Task DAG in the Monitoring UI is slow (#391): Thanks to Matthew Ashton-Knochel from working with tui-nodes folks to optimise the direct rendering mode of it.
  • Restored the original log debug behavior (#381): if nothing is specified -> debug builds enable log-debug, -> release buids enable log-info. if anything is specified, it will repect the user's choice.
  • Unconditionally install ctrl-c handler (#375): instead of relying on user's code to handle that as it can cause easy log corruption.
  • Fix CuCompactString initialization CuListsManager (#409): a zero init of the copper list created status strings that are all 24x \\0. This fixes it with a correct initialzation that set them at length 0 instead. It was wasting a bunch of log space for no reason.

Dependency updates

  • socket2 -> 0.6.0
  • cuda-toolkit -> 0.2.26
  • gstreamer & gstreamer-app -> 0.24
  • rerun -> 0.24
  • glam -> 0.30.x
  • thiserror -> 2.x

v0.8.0 - 2025-05-26

High level

This release has been focused on Zenoh and ROS2 interoperability, modular configuration for larger robots with a new support for the notion of "mission" (aka mode like autonomy mode, datacollect mode etc..)

New Features

  • Copper to ROS2 Integration: We now support streaming Copper data directly to ROS2 (rwm_zenoh). This includes a working example bridging Copper tasks to ROS2 nodes and a translation layer for Copper message representations. See PR #348.

  • Zenoh Sink: Added a zenoh_sink component to forward Copper messages to any other Zenoh participant with the serialization of your choice. Thanks to @kamibo (#316).

  • Missions System: You can now define and generate missions from RON, with automatic default fallback. Missions are properly serialized, structured, and support reuse through includes. (#337, #294)

  • Modular Configuration System: Copper now supports reusable and parameterized config files. This feature introduces relative/absolute file includes, parameter substitution using {{param}} syntax, and well-defined merging rules. You can now split large config files into logical components and reuse templates with different parameters.
    Example templates are included under the modular_config_example directory.
    Thanks to @makeecat (#328)

  • Memory Pool Monitoring UI: Copper's monitoring console cu-consolemon now includes a dedicated page to visualize memory pool usage in real time. It displays total preallocated memory, in-use buffers, memory handles in flight, and the allocation rate. This provides better observability into buffer-heavy pipelines using CopperLists and memory pools.
    Thanks to @makeecat for implementing this! (#190)

  • CuRateLimit Task: A new CuRateLimit task lets you easily throttle any message flow without modifying the producing task. See #343.

  • Copper Application Trait: Introduced a trait to generalize Copper applications. Enables grouping and dynamic handling of mission-defined applications. (#345)

  • Nix Setup: Introduced Nix setup for Linux, supporting CUDA / non-CUDA environment. Thanks to @makeecat! (#332)

Enhancements

  • Compile-time log-level macro: Copper now supports compile-time log filtering for logs. This feature lets you fully disable logging macros at compile time by enabling only the relevant features in Cargo.toml. It introduces a log-level field in CuLogEntry, and updates serialization, formatting, and documentation accordingly. Thanks to @makeecat! (#318) Example usage:
[dependencies]
cu29 = { version = "0.7.0", features = ["log-level-debug"] }

  • CuGraph Separation: Graph-related functionality has been extracted into its own module to reduce coupling between configuration and execution layers. (#334)

  • Bevy 0.16 Support: Copper is now compatible with Bevy 0.16, including updated patches for asset loading and avian3d. Thanks to @makeecat (#303).

  • Support for iceoryx2 v0.6.1: Iceoryx2 backend updated and patched accordingly. (#338)

  • Dockerization of ros-caterpillar: ros-caterpillar has been fully containerized to deal with OS dependency hell. It is now portable and future-proof. (#348)

Dependency Bumps

  • iceoryx2-bb-log bumped to 0.6.1 (#340)
  • uom bumped to 0.37.0 (#339)
  • Other crates: cached-path, iyes_perf_ui, faer, ron, petgraph, nix, etc. updated to support Bevy 0.16 and latest Rust editions.

v0.7.0 - 2025-03-14

High level

This release added a set of feature useful to develop autonomy algorithms on Drone (MSP). We also have a solid set of quality of life improvements derived from real usage.

Notable regression

  • bincode after 4 years stuck at the 2.0.0-rc3 decided to release the 2.0.0 and it broke the API. This release updates all our API calls. The good news is that decoding in memory pools are now supported, it will be useful.

New Features

  • gstreamer support

You can define arbitraty gstreamer pipeline and hook it as an appsink to Copper are a SrcTask #239

This for example a source that will get the camera from your robot, stream it to a host on your network for live display but also convert it to GRAY8 and inject it to the Copper task graph.

        (
            id: "video",
            type: "cu_gstreamer::CuDefaultGStreamer",
            config: {
                "pipeline": "v4l2src device=/dev/video9 ! image/jpeg,width=1920,height=1080 ! tee name=t t. ! queue ! jpegdec ! videoconvert ! appsink name=copper t. ! queue ! jpegparse ! rtpjpegpay ! udpsink host=192.168.1.73 port=5000",
                "caps": "video/x-raw, format=GRAY8, width=1920, height=1080",
            },
        ),
  • Dynamic Threshold. A quick 0 copy implementation using an integral image. #244


  • April Tag support. It can give you the relative pose of tags from images. #246
        (
             id: "pos",
             type: "cu_apriltag::AprilTags",
             config: {
                 "tag_family": "tag16h5",
                 "tag_size": 0.14,
                 "fx": 1513.93,
                 "fy": 1513.93,
                 "cx": 946.84,
                 "cy": 557.819,
             },
        ),
  • MSP (MultiWii Serial Protocol)

This is a communication protocol used on drones with INAV, cleanflight, betafligh #248 image

  • Added 2 new robotics standard messages: Transform3D and Pose #245

They can be transformed back and forth with into() from Faer and Nalgebra so you can integrate that to your robotics algorithms smoothly.

       let pose = Transform3D {
            mat: [
                [1.0, 2.0, 3.0, 4.0],
                [5.0, 6.0, 7.0, 8.0],
                [9.0, 10.0, 11.0, 12.0],
                [13.0, 14.0, 15.0, 16.0],
            ],
        };

Quality of life improvements

  • The Cu29 crate has a new global debug_macro feature to be able to see any generation (runtime, structured logging, SOAs etc...) #247
  • PyO3 (the python bindings for log reading) is now an optional feature #240 Thanks Mike Kaliman!
  • The Input order in the tuples of tasks receiving messages from more than one taask is now determined by their order of connection #251 Thanks @hscoelho!
  • Better feedback when a task sends an error to the runtime. Ie. now it actually triggers a debug! with the error description instead of just giving you the result of the monitoring behavior.
  • CuTime now support Copy which makes clock forwarding more immediate.
  • Bevy perf-ui is back (overlay for bevy) and can be used in your simulations (see cu-balancebot) #263 Thanks @AS1100K!

And finally special thanks to @makeecat for the ongoing help on the CI/CD that starts to be a complicated piece of machinery at this point.

v0.6.0 - 2025-01-20

New Features

  • Images support: We added the API to make a pool instance and bind is as a [u8] for an image buffer, see below about Memory Pools.

  • Video For Linux 2 support: We built a V4L2 source so you can read images directly from you video system on Linux. The component is named cu_v4l here are an example of parameters to can set in your RON file:

   config: {
      "device": 0,       // The /dev/video0 device
      "width": 3840,     // Width asked
      "height": 2160,    // Height asked
      "fps": 30,         // image rate
      "fourcc": "NV12",  // buffer format
      "buffers": 4,      // how many buffers you want to allocate
      "timeout_ms": 500, // time before giving up on trying to get a frame
  }

https://github.com/user-attachments/assets/0858026d-bf92-418f-9525-3df5d5de9b70

  • Computer Vision: Kornia API support: Kornia is an awesome Computer Vision set of algorithms. The 2 projects cooperated to we can map Copper images to Kornia and Kornia can accept them with 0 copy! Check out the Kornia-rs project. Big thanks to the creator of this project Edgar Riba for his support! image

  • 0-Copy Heterogeneous Memory Pools: Said wut?

Before this release anything the tasks would touch (as input or output) would have been needed to be copied in the CopperList ie. the backing structure that makes Copper so fast and low latency with no synchronization etc. Building a complex robot is the art of having not only low latency like this but also large throughput: this is the large throughput side of Copper for modern computer architectures!

You can create large memory buffers pools either in main host memory or on a "device" for example a GPU (this is what heterogeneous memory means) and Copper will give you memory handles that you can use to: - pass the memory to another task - pass the memory to the accelerator that can use it (for example CUDA kernels see below) - pass the memory to a DMA backed driver (see the new V4L driver below)

For you developer, it means that you can safely stream multi-megabytes structures (Images, Matrices, PointClouds etc..) at no cost and you also buffer them in tasks if you need to keep them for a few cycle more (for temporal alignment for example).

  • New Basic Livox Lidar Tele15 Driver: image

Thanks to @luc-k1 from Konboi One.

  • New Debug log pane in cu-consolemon: Before that you had to choose between the cool TUI and the text log (that was hidden behind) but thanks to @AS1100K effort we now have a tab that can capture your debug logs! (it is only enabled if you want them as they are expensive to build and if the app is build in debug mode).


  • Pcap replay support: for drivers reading data from the network, it is very common to build a test set from network capture. This is a little tool that help driver developer to inject those capture and build a small test data set to validate their driver.


  • Quicksort on PointCloud SOA ts: Sorting by time of validity allows the points to get merged more efficiently.

lidar_fusion

2 lidar sources getting merged.

Enhancements

  • Prelude: we drastically simplified the imports for Copper, now you just need to do:
use cu29::prelude::*;

And you are good to go for starting Copper, creating tasks, etc...

  • More flexible project generation: The template will ask you which version of Copper you want to generate your project for. image

  • Log parameter in RON: Added the section_size parameter in the RON file. It is useful to tune your logging throughput.

  • Builder pattern for the Copper Application: we made the CopperContext official and change the app init to be with a cool builder pattern like:

  let mut application = CaterpillarApplicationBuilder::new()
        .with_context(&copper_ctx)
        .build()
        .expect("Failed to create application.");

Thanks to @hscoelho for this one!

  • Log disable: Now you can disable task logging completely (if you know you won't need the data). Thanks to @AS1100K!

  • Better feedback on configuration snafu: We improved the clarity of the messages given to the user with a line number if possible in case of misconfiguration... Thanks again to @AS1100K!

  • Full dependency update: Enjoy the latest Bevy, the latest Rerun, the latest everything thanks to @makeecat. This includes the new picker that has been integrated to Bevy.

  • Logger Parameters Consistency: We now check if the various parameters of the unified logger makes sense ie. section not larger than slabs etc.. that avoids a lot of user confusion.

  • Clippy escaped our CI/CD again but thanks to an heroic effort from @makeecat we have a major improvement on our CI/CD to cross check all the platforms, features and configurations.

  • -= op on CuTime, it is useful to compute quickly time offsets.

  • ScopedAllocCounter: we improved their use by exposing a sane public API so you can check if you or one of your dependency is allocating in a given scope. Thanks to Zac8668

Bug Fixes

  • X11 support for Bevy on Linux: Apparently some people have not migrated to Wayland yet :P. Thanks @Paulotten

  • Missing ./logs would make cu-balancebot-sim crash: thanks @vsenn for reporting this.

v0.5.1 - 2024-12-05

New Features

  • Microsoft Windows Compatibility is finally complete #129: So many thanks to @Lishen_ for the unwaivering bruteforce port.

  • Rerun visualization for pointclouds #131: Added an example to start and feed rerun visualization with our standard pointcloud

Enhancements

  • BalanceBot Simulation perf overlay #137: Now you can activate the perf-ui feature to see if the bevy side of the simulation is working well in a diag overlay.

  • Iterators For SOAs (Struct of arrays) #134: SOAs can generate an iterator for a quick SOA to AOS transform and natural API.

Bug Fixes

  • BalanceBot Simulation Issues #137: Resolved a waste of resources on balancebot-sim (the bevy entities were created over and over). Thanks to @Nashenas88 for spotting the issure and the initial fix.

  • Pointcloud payload and Hesai structs visibility fix #132 & #133: Snafu as they were published with no client crates.

  • Multiple gammar fixes #125: Thanks to @AnyTimeTraveler for all the corrected Frenglish.

v0.5.0 - 2024-12-02

New Features

  • Deterministic Log Replay: Copper can now replay a log through your code in a deterministic fashion ie. if your tasks are deterministic, it will always output the same output from the same input! See the balancebot-resim for example.

  • Aligner Task #114: Added an aligner task that synchronizes multiple inputs by aligning matching time windows, facilitating coordinated data processing. This is particularly useful for sensor fusion.

  • :exclamation: Lifecycle Trait Removal #115: Removed the lifecycle trait to simplify task implementation and decouple passed types, streamlining the codebase. To build a minimum task a user needed to implement one method from the CuTaskLifecycle trait (new) and at least the process method from they flavor of tasks. This was forcing the implementation of 2 mandatory traits which is not necessary or useful for the user. Now we moved all the lifecycle methods in the tasks trait to only have to implement 2 traits (the task and Freezable, the serialization of its state)

Enhancements

  • Named Output Mapping on CopperLists #121: Implemented mapping of Copperlist indices to named outputs from tasks, allowing users to access task outputs symbolically without relying on execution order.

  • CuTimeRange Introduction #106: Introduced CuTimeRange to represent messages containing multiple Time of Validity (TOV) instances, such as sequences of images or IMU measurements.

  • Windows Compatibility #110: Enhanced compatibility by adding a mock for cu_ads7883, enabling compilation on Windows platforms.

  • Dependency Updates #104: Performed a general dependency bump post-release to incorporate the latest improvements and fixes.

  • Faster SOA ops: adding len to the public API allows quicker preallocations.

  • f32 shortcut for dimensions and reflectivity for Lidars: simple from f32 makes it easier to not deal too much with the units.

Bug Fixes

  • BalanceBot Simulation Stability #118: Resolved a core dump issue on exit for balancebot-sim by enforcing specific graphics backends, ensuring clean termination.

  • CuCompactStr Serialization #119: Fixed serialization and deserialization issues with CuCompactStr to ensure correct data handling.

  • Project Generation Fix #120: Addressed issues in project generation by adding crate:: for cumsgs generation, ensuring correct module resolution.

  • Unused Code Cleanup #121: Removed unused imports and methods to maintain code cleanliness and reduce potential maintenance overhead.

  • Test Stability #107: Ignored hardware-dependent tests and added test --workspace to CI/CD to enhance test reliability across different environments.

v0.4.1 - 2024-11-15

New Features

  • Iceoryx2 Support #87: Introduced Iceoryx2 support. Iceoryx2 is the successor to Iceoryx in pure Rust. The Copper support included a source component to receive messages, a sink component to send messages.
  • Hesai XT32 Support #101: Added the preliminary support for the Hesai XT32. If you have the actual HW handy, feel free to provide us the feedback!
  • First standard Lidar Message Design #99: For now in SOA out or the lidar sensors it allows SIMD optimizations for the first operations that are usually a frame transform.

Enhancements

  • Variable-Length SoAs #100: Improved SoA (Structure of Arrays) to support variable lengths on top of their fixed size in the Copper List.
  • CI Improvements #98: Integrated clippy warnings into CI, thanks to makeecat

Bug Fixes

  • BalanceBot Simulation Reset #86: Improved the reset_sim functionality for the balance bot. Thanks to makeecat.
  • Publishing Fixes #103: Resolved various publishing issues and added dry-run validations to avoid disruptions.

v0.4.0 - 2024-10-29

New Features

  • Simulation API Support: With sim-mode=true in the main Copper macro, Copper will generate for you all the callbacks at all the tasks states it is going through (Start, Preprocess, Process, etc...). Combined with the already mockable Clock it allows a very easy integration with a virtual environment.
  • BalanceBot Simulation #69: Built on that and leveraging Bevy and Avian3D for realistic motion dynamics, we made a little demo of our little real world demonstrator. The real world code and the sim code are 100% identical.
  • Config Embedding #78: Embedded the default copperconfig.ron directly into the Copper executable, simplifying deployment for the main case (just one executable to copy and that's it!!). If the file is present, it will take precedence over the embedded version. We also do log the actual config used in the logs so you can come back to it in doubt.

Enhancements

  • Cross-Platform Compatibility for Mocking #75: Enhanced feature flags to better support various platforms, particularly macOS, enabling testing with mocked hardware dependencies. The full repo now compile under CI/CD on MacOS and Linux (previously it we could only compile and test the Core)

Bug Fixes

  • Terminal Restoration #73: Fixed issues with terminal states not restoring properly upon exit, preventing corruption and enhancing the overall stability of simulator sessions.
  • Print Output Cleanup #80: Streamlined console logging to minimize redundant or unnecessary print statements, making debugging output more manageable.
  • Git LFS Migration #76: Moved heavy assets to a CDN to mitigate GitHub LFS limitations, reducing operational overhead and streamlining asset distribution.

Infrastructure and CI/CD

  • Asset CDN Integration #35: Transitioned assets to a content delivery network to avoid the super costly Github LFS.
  • Improved Documentation #82: Expanded and refined documentation across modules, enhancing clarity for new users and developers.

Internal Refactoring

  • Logging Value Enhancements #80: Fine-tuned value logging to increase logging granularity and simplify troubleshooting in complex simulation states.
  • Feature Flag Revamp #75: Restructured feature flags to better support debugging and cross-platform configurations, especially for macOS compatibility.

v0.3.1 - 2024-10-12

A Minor release with 2 new components and some fixes.

New Components

  • New cu-pid task: this is the first algorithm we publish. It is from the balancebot, a generalized PID controller logic you can reuse in your projects, see the readme in the crate.

  • New cu-consolemon monitoring: this is a TUI for Copper showing the information exposed by the new monitoring interface released in 0.3.0.

API improvements

  • Added Mul to CuDuration for easy time offset computations.

Various

  • Tree Reorganization:
  • Major reorganization of the repository structure for improved clarity and maintainability.

Bug Fixes

  • Logging Fixes:
  • Resolved an issue where OnceLock was not releasing the unified logger, preventing a clean shutdown of the logger.
  • Addressed an issue with a double close in the logger during shutdown.

v0.3.0 - 2024-09-30

This alpha release introduces substantial improvements to the Copper framework's monitoring capabilities and API flexibility.

Highlights

  • New multisource and optional input API: The Copper engine now supports multiple and optional inputs/outputs (see PR #44).

This is a breaking change.

Now you can link 2 tasks to one in the RON file like this:


    tasks: [
        (
            id: "balpos",
            type: "cu_ads7883::ADS7883",
        ),
        (
            id: "railpos",
            type: "cu_rp_encoder::Encoder",
        ),
        (
            id: "pidctrl",
            type: "pidtask::PIDTask",
            config: {
               [...]
            },
        ),
        (
            id: "motor",
            type: "cu_rp_sn754410::SN754410",
            [...]
        ),
     ],
    cnx: [
        //                    vvvvvvvvvv   same dest!
        (src: "balpos",   dst: "pidctrl",   msg: "cu_ads7883::ADSReadingPayload"),
        (src: "railpos",  dst: "pidctrl",   msg: "cu_rp_encoder::EncoderPayload"),
        (src: "pidctrl",  dst: "motor",   msg: "cu_rp_sn754410::MotorPayload"),
    ],
)

To help you manage the types that are generated, we are giving a set of macros to help you matching the correct input / output types:

impl<'cl> CuTask<'cl> for PIDTask {
    // This tasks takes 2 inputs!
    // They are given in the order of task declaration
    // the input_msg! macro build a (&CuMsg<ADSReadingPayload>, &CuMsg<EncoderPayload>) tuple under the hood.
    // it also works with 1 input and then you will get a straight &CuMsg<> immutable ref.
    // For technical Rust reasons, you need to explicitely tie the lifetime ('cl means copperlist if you are curious: the internal structure of copper for messages)
    type Input = input_msg!('cl, ADSReadingPayload, EncoderPayload);

    // same thing but as an output this is a &mut CuMsg<MotorPayload>
    type Output = output_msg!('cl, MotorPayload);

    fn process(
        &mut self,
        clock: &RobotClock,
        input: Self::Input,  // here this is now straight the input type, it is a little simpler.
        output: Self::Output,
    ) -> CuResult<()> {
        let (bal_pos, rail_pos) = input;  // you can unpack the tuple directly those are resp. &CuMsg<ADSReadingPayload> and &CuMsg<EncoderPayload>
        let bal_tov = bal_pos.metadata.tov.expect("we should have had a message here!");  // the messages are now optional depending on the context they could be expected or really optional.
        // we have a new method called set_payload for the output
        output.set_payload(MotorPayload { power: 0.0 }); // If you don't do that it will send away a message with a None payload
  • Monitoring System: The monitoring framework is now fully integrated, allowing real-time stats collection and cumulative statistics (see PRs #49, #50, and #51). We can imagine complex decision trees happening at that stage for complex robots and various degraded modes.

The monitoring component is really similar to a task, but with specialized callbacks:

// This is in the RON file, just add a monitor entry like this:

    tasks: [
        (
            id: "task0",
            type: "tasks::ExampleSrc",
        ),
        [...]
     ],
    cnx: [
        (src: "task0", dst: "task1", msg: "i32"),
        [...]
    ],
    monitor: (type: "ExampleMonitor")  // here, add a config entry if necessary
)

struct ExampleMonitor {
    tasks: &'static [&'static str], // We give you the task ordinal to task id mapping (so it is stable as long as you don't change your task ids.
}

impl CuMonitor for ExampleMonitor {
    // We pass you the config you gave in the RON file exactly like for the tasks.
    fn new(_config: Option<&ComponentConfig>, taskids: &'static [&str]) -> CuResult<Self> {
        Ok(ExampleMonitor { tasks: taskids })
    }

    fn start(&mut self, clock: &_RobotClock) -> CuResult<()> {
        // callbacked when all the tasks, start called.
    }

    fn process_copperlist(&self, msgs: &[&CuMsgMetadata]) -> CuResult<()> {
        // This is callbacked at the end of the processing of a copper list (basically near when the CL is getting serialized to disk after a success.
        // The metadata gives you all the timings you need to check if your robot is still behaving nominally.
        for t in msgs.iter().enumerate() {
            let (taskid, metadata) = t;
            debug!("Task: {} -> {}", taskid, metadata);
        }
        Ok(())
    }

    fn process_error(&self, taskid: usize, step: CuTaskState, error: &CuError) -> Decision {
        // This is called back if any task reports an error at any step (start, process, ...)
        // You can then match that taskid and compute a decision for your robot: Abort, Ignore, Shutdown (see the cu28/monitoring.rs file for semantic details.
        Decision::Ignore
    }

    fn stop(&mut self, clock: &_RobotClock) -> CuResult<()> {
        // call when the stack is stopping
        Ok(())
    }
}

Other Notable Changes

New Features

  • Real-time cumulative stats for CuDurations. See cu29/monitoring.rs we built an histogramming feature for timings this is super useful for monitoring components. Here is the list of everything you get it is not only pretty comprehensive but it is fixed size on memory so it should be pretty swift for any real time monitoring needs or UIs.
    // on the CuDurationStatistics struct
    pub fn min(&self) -> CuDuration;
    pub fn max(&self) -> CuDuration;
    pub fn mean(&self) -> CuDuration
    pub fn percentile(&self, percentile: f64) -> CuDuration;
    pub fn stddev(&self) -> CuDuration;
    pub fn jitter_min(&self) -> CuDuration;
    pub fn jitter_max(&self) -> CuDuration;
    pub fn jitter_mean(&self) -> CuDuration;
    pub fn jitter_stddev(&self) -> CuDuration;
    pub fn jitter_percentile(&self, percentile: f64) -> CuDuration;

Fixes

  • Serialization / Deserialization Bug on Value (#42). A code reformat shuffled the serialization IDs Oo.

Enhancements

  • Virtual Output for Sinks (#53):

  • before that there was no mean to monitor sinks (or hacks you might have seen on the incoming message). Now the stack behind the scene generates a () empty message for each sink you you get the perf number cleanly for them even if they don't output anything.

  • Balance Bot Demo (#46):

  • a more complete example of a real robot demo we will bring at conferences.

Miscellaneous

  • And a bunch of cleanup / doc improments.

Copper - v0.2.3 - 2024-09-11

We are pleased to announce the release of Copper v0.2.3, which includes several new features, enhancements, and bug fixes. Below is a summary of the key changes in this release:

New Features

  • SN754410 Driver Support #40: Added a new driver for the SN754410 motor driver. This driver allows easy integration with motor control applications, providing robust support for H-bridge motor control on a wide range of systems. This driver is fully compatible with the BalanceHAT.
  • ADS7883 Driver #39: Introduced a driver for the ADS7883, a 12-bit SPI ADC. This addition includes comprehensive documentation in the README to facilitate setup and integration. The ADS7883 driver is also compatible with the BalanceHAT.

Enhancements

  • macOS Development Support #25: Copper can now be developed on macOS! The CI/CD pipeline has been updated to support macOS, ensuring cross-platform compatibility for all users.
  • cu29_clock Enhancements #32: Added a division feature to the cu29_clock, allowing more granular time management and synchronization within the Copper runtime.
  • Structured Log Index File in Debug Mode #30: Removed the requirement for an index file in debug mode within struct_log, simplifying the debugging process ie. only the config and the executable needs to be deployed for the debug build and you get a standard debug text logging.
  • Logging Slabs Addition #24: The current unified logger works with big memory mapped files. Initially we thought we could rely on the mmap resize feature of the kernel api but it just doesn't work. We are reverting into building "slabs", ie dividing the data logger into large files. Those files can be concatenated and read or directly read from the log exporter.

Bug Fixes

  • Compilation Feedback Adjustments #33: Moved compilation feedback from standard output to standard error to better align with conventional logging practices.
  • Flush and Core Dump Fixes #29: Resolved issues where changes after a section flush could cause a core dump, improving the stability of the logging system.

Infrastructure and CI/CD

  • CI/CD Pipeline Enhancements #25: Added macOS support to the CI/CD pipeline, ensuring better cross-platform compatibility.
  • Removed 'Continue on Error' in CI/CD #36: Addressed a CI/CD issue where the pipeline was green while failing Oo.

Refactoring and Internal Changes

  • Unified Logger Refactor #27: Refactored the Unified Logger to introduce a dual-slab logging system, improving performance and eliminating the need for remap/resize operations.

  • Runtime Loop Enhancements #21: Added a new notion of loops in the runtime plan, setting the stage for more flexible and powerful runtime behavior.

If you're looking to build your own interfacing with the SN754410 or ADS7883 drivers, we share detailed connectivity schematics with a Raspberry Pi to help you get started.

We recommend updating to this latest version to take advantage of these improvements. As always, please refer to the updated documentation and release notes for detailed information on how to integrate these changes into your projects.

If you have any questions or need further assistance, feel free to reach out to our support team.
